Ultrasonic Equipment SIUI CTS-9009 Plus

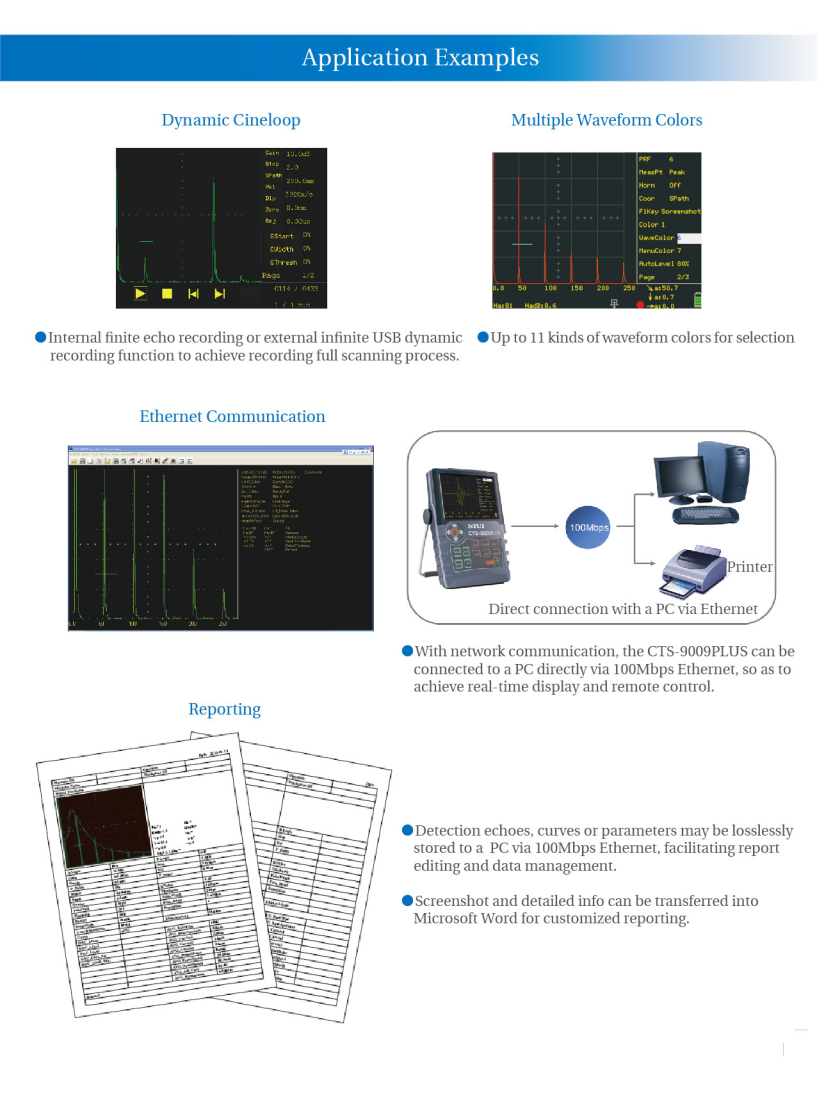

CTS-9009PLUS_Page1.png Image 1 of 6
CTS-9009PLUS_Page2.png Image 2 of 6
CTS-9009PLUS_Page3.png Image 3 of 6
CTS-9009PLUS_Page4.png Image 4 of 6
CTS-9009PLUS_Page5.png Image 5 of 6
CTS-9009PLUS_Page6.png Image 6 of 6

SIUI CTS-9009 Plus

€0.00

Portable, Easy-to-Use, Reliable-Advanced General-Purpose Digital Flaw Detector

  • Adjustable spike & square wave pulser up to 500V

  • High-resolution display screen with 640x480 pixels •VGA video output

  • Adjustable damping

  • Operation Frequency up to 20MHz

  • High dustproof & waterproof: IP65 (IP67 as option)

Superior Features

  • Operating frequency range: 0.5~20MHz, highlighting the advantages of high sensitivity and broadband.

  • Adjustable pulse width square wave transmission is up to 500V.

  • 20 ~ 2000Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.

  • The convenient and useful probe spectrum analysis function enables the users to know the probe waveform, spectrum and centre frequency, resulting in more precise flaw detection evaluation.

  • Measure the crack height by the edge peak echo method.

  • Max. sampling rate 240MHz; Measurement resolution 0.1mm.

  • RF (Radio Frequency) echo display: good for thin-wall material measurement, academic research or qualitative analysis.

  • The DAC curve works with the echo compare function, making echo quantification of different distances and amplitudes more convenient.

  • The AGC (auto gain control) function, together with peak echo and image freeze function, helps quickly identify the flaws' highest echo, enabling efficient flaw detection. •Advanced thickness measurement function available.

  • Featured with AWS D1.1/DI.5 and API 5UE evaluation standards.

  • The gate magnifier function magnifies the echo area within the gate to the whole screen display.

  • Up to 500 sets of curves and waveforms can be saved for various workpieces and flaw detection standards.

Quantity:
Quotation

Portable, Easy-to-Use, Reliable-Advanced General-Purpose Digital Flaw Detector

  • Adjustable spike & square wave pulser up to 500V

  • High-resolution display screen with 640x480 pixels •VGA video output

  • Adjustable damping

  • Operation Frequency up to 20MHz

  • High dustproof & waterproof: IP65 (IP67 as option)

Superior Features

  • Operating frequency range: 0.5~20MHz, highlighting the advantages of high sensitivity and broadband.

  • Adjustable pulse width square wave transmission is up to 500V.

  • 20 ~ 2000Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.

  • The convenient and useful probe spectrum analysis function enables the users to know the probe waveform, spectrum and centre frequency, resulting in more precise flaw detection evaluation.

  • Measure the crack height by the edge peak echo method.

  • Max. sampling rate 240MHz; Measurement resolution 0.1mm.

  • RF (Radio Frequency) echo display: good for thin-wall material measurement, academic research or qualitative analysis.

  • The DAC curve works with the echo compare function, making echo quantification of different distances and amplitudes more convenient.

  • The AGC (auto gain control) function, together with peak echo and image freeze function, helps quickly identify the flaws' highest echo, enabling efficient flaw detection. •Advanced thickness measurement function available.

  • Featured with AWS D1.1/DI.5 and API 5UE evaluation standards.

  • The gate magnifier function magnifies the echo area within the gate to the whole screen display.

  • Up to 500 sets of curves and waveforms can be saved for various workpieces and flaw detection standards.

Portable, Easy-to-Use, Reliable-Advanced General-Purpose Digital Flaw Detector

  • Adjustable spike & square wave pulser up to 500V

  • High-resolution display screen with 640x480 pixels •VGA video output

  • Adjustable damping

  • Operation Frequency up to 20MHz

  • High dustproof & waterproof: IP65 (IP67 as option)

Superior Features

  • Operating frequency range: 0.5~20MHz, highlighting the advantages of high sensitivity and broadband.

  • Adjustable pulse width square wave transmission is up to 500V.

  • 20 ~ 2000Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.

  • The convenient and useful probe spectrum analysis function enables the users to know the probe waveform, spectrum and centre frequency, resulting in more precise flaw detection evaluation.

  • Measure the crack height by the edge peak echo method.

  • Max. sampling rate 240MHz; Measurement resolution 0.1mm.

  • RF (Radio Frequency) echo display: good for thin-wall material measurement, academic research or qualitative analysis.

  • The DAC curve works with the echo compare function, making echo quantification of different distances and amplitudes more convenient.

  • The AGC (auto gain control) function, together with peak echo and image freeze function, helps quickly identify the flaws' highest echo, enabling efficient flaw detection. •Advanced thickness measurement function available.

  • Featured with AWS D1.1/DI.5 and API 5UE evaluation standards.

  • The gate magnifier function magnifies the echo area within the gate to the whole screen display.

  • Up to 500 sets of curves and waveforms can be saved for various workpieces and flaw detection standards.
